Hex Head Bushing #3000 -B16.11

PCCo chuyên cung cấp các loại phụ kiện áp lực cao dùng trong nganh công nghiệp hóa chất , hệ thống đóng tàu ,thực phẩm hóa chất , hóa dầu , xăng dầu , khí gaz , Hotline :0972.208.209 -0967.208.209

Mã SP:B16.11
Giá bán:19,800 vnđ

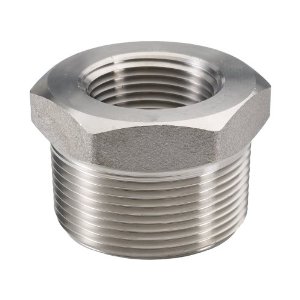

Tên sản phẩm: HEX HEAD BUSHING # 3000 - ASME B16.11

- Vật liệu: Inox 304 - 316
- Áp xuất làm việc: 1500PSI - 3000PSI
- Kích cỡ: 1/2" - 2" (DN15 - DN50)
- Xuất xứ: Taiwan - China - Korea

THÔNG SỐ KỸ THUẬT:

Hexagon Bushing
SIZE		H		L		W
SIZE		mm	in	mm	in	mm	in
3/8"	1/4"	13	0.51	17.5	0.69	20	0.79
1/2"	3/8"	16	0.63	22	0.87	25	0.98
1/2"	1/4"	17	0.67	23	0.91	29.5	1.16
3/4"	3/8"	17	0.67	23	0.91	29.5	1.16
3/4"	1/2"	17	0.67	23	0.91	29.5	1.16
1"	1/4"	20	0.79	27	1.06	36.5	1.44
	3/8"	20	0.79	27	1.06	36.5	1.44
	1/2"	20	0.79	27	1.06	36.5	1.44
	3/4"	20	0.79	27	1.06	36.5	1.44
1-1/4"	1/4"	22	0.87	30	1.18	45.5	1.79
	3/8"	22	0.87	30	1.18	45.5	1.79
	1/2"	22	0.87	30	1.18	45.5	1.79
	3/4"	22	0.87	30	1.18	45.5	1.79
	1"	22	0.87	30	1.18	45.5	1.79
1-1/2"	1/4"	22	0.87	30	1.18	50	1.97
	3/8"	22	0.87	30	1.18	50	1.97
	1/2"	22	0.87	30	1.18	50	1.97
	3/4"	22	0.87	30	1.18	50	1.97
	1"	22	0.87	30	1.18	50	1.97
	1-1/4"	22	0.87	30	1.18	50	1.97
2"	1/4"	23.5	0.93	33.5	1.32	62	2.44
	3/8"	23.5	0.93	33.5	1.32	62	2.44
	1/2"	23.5	0.93	33.5	1.32	62	2.44
	3/4"	23.5	0.93	33.5	1.32	62	2.44
	1"	23.5	0.93	33.5	1.32	62	2.44
	1-1/4"	23.5	0.93	33.5	1.32	62	2.44
	1-1/2"	23.5	0.93	33.5	1.32	62	2.44
2-1/2"	1/2"	28.5	1.12	39.5	1.56	78	3.07
	3/4"	28.5	1.12	39.5	1.56	78	3.07
	1"	28.5	1.12	39.5	1.56	78	3.07
	1-1/4"	28.5	1.12	39.5	1.56	78	3.07
	1-1/2"	28.5	1.12	39.5	1.56	78	3.07
	2"	28.5	1.12	39.5	1.56	78	3.07
3"	1/2"	28.5	1.12	40	1.57	91	3.58
	3/4"	28.5	1.12	40	1.57	91	3.58
	1"	28.5	1.12	40	1.57	91	3.58
	1-1/4"	28.5	1.12	40	1.57	91	3.58
	1-1/2"	28.5	1.12	40	1.57	91	3.58
	2"	28.5	1.12	40	1.57	91	3.58
	2-1/2"	28.5	1.12	40	1.57	91	3.58
4"	1/2"	30	1.18	44.5	1.75	117	4.61
	3/4"	30	1.18	44.5	1.75	117	4.61
	1"	30	1.18	44.5	1.75	117	4.61
	1-1/4"	30	1.18	44.5	1.75	117	4.61
	1-1/2"	30	1.18	44.5	1.75	117	4.61
	2"	30	1.18	44.5	1.75	117	4.61
	2-1/2"	30	1.18	44.5	1.75	117	4.61
	3"	30	1.18	44.5	1.75	117	4.61

304 Stainless Steel Pipes Chemical Requirements
	C max	Mn max	P max	S max	Si	Cr	Ni	Mo	N
304	0.08	2	0.045	0.03	1	18.0-20.0	8.0-11.0	...	...
304L	0.035	2	0.045	0.03	1	18.0-20.0	8.0-11.0	...	...
